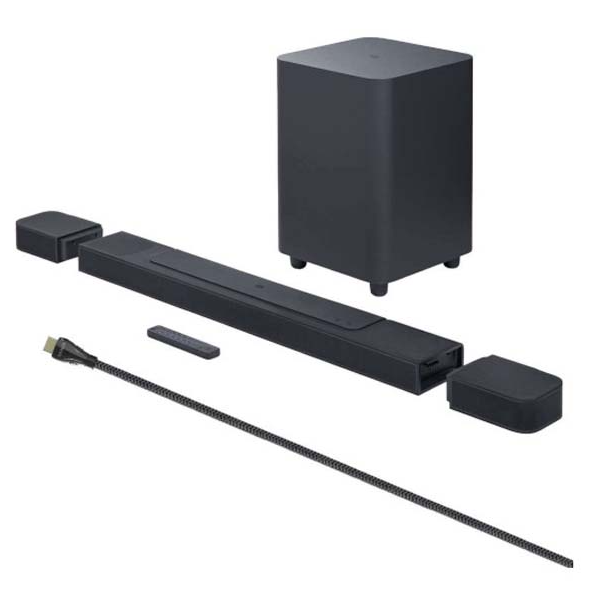

JBL BAR 1000 Pro 7.1.4 Soundbar with True Dolby Atmos

Audio

• Frequency response: 33Hz – 20kHz (-6dB)
• Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

USB

• USB port: Type A
• USB rating: 5V DC, 0.5A
• Supported file format: MP3
• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16 – 48 kHz
• MP3 bitrate: 80 – 320 kpbs
• USB port: Type A

Wireless

• Bluetooth version: 5.0
• Bluetooth profile: A2DP 1.2, AVRCP 1.5
• Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz
• Bluetooth transmitter power: <15dBm (EIRP)
• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi transmitter frequency range: 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
• 2.4G Wi-Fi transmitter power: < 20dBm (EIRP)
• 5G Wi-Fi transmitter frequency range: 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725-5.825GHz
• 5G Wi-Fi transmitter power: 5.15 – 5.25GHz <23dBm, 5.25 – 5.35GHz & 5.47 – 5.725GHz <20dBm, 5.725 – 5.825GHz <14dBm (EIRP)
• 2.4G wireless frequency range: 2406 – 2474MHz
• 2.4G wireless power: <10dBm (EIRP)

Dimensions

• Main soundbar dimensions (W x H x D): 884 x 56 x 125 mm / 34.8” x 2.2” x 4.9”
• Detachable surround speaker dimensions (each) (W x H x D): 155 x 56 x 125 mm / 6.1” x 2.2” x 4.9”
• Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12” x 17.3” x 12”
• Soundbar weight: 3.7 kg / 8.2 lbs
• Detachable surround speaker weight (each): 0.7kg / 1.55 lbs
• Subwoofer weight: 10 kg / 22 lbs
• Packaging dimensions (W x H x D): 1000 x 375 x 475 mm/ 39.4” x 14.8” x 18.7”
• Packaging Weight: 19.4 kg / 42.7 lbs
